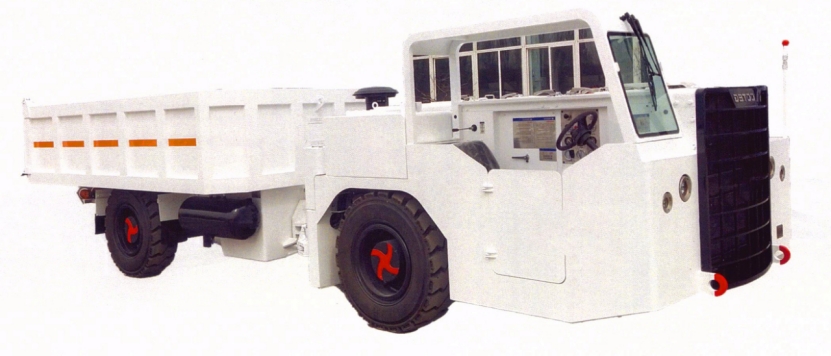

4WD Material Transporter
The 4WD style offers the vehicle good traction performance and outstanding climbing capacity, so the vehicle is suitable for complex road conditions;The turbocharged and air-to-air intercooled explosion-proof dieselengine is not only powerful but also has a low exhaust emission index;The sway-type articulated structure with dual articulated points functions to boost the adhesion and structural strength of the vehicle.
4WD Material Transporter Technical Parameters:
| S/N | Item | Technical indicator |
| 1 | Rated capacity (kg) | 12000 |
| 2 | Complete vehicle kerb mass (kg) | 10000 |
| 3 | Overall dimensions of complete vehicle (mm) | 7550×2300×2100 |
| 4 | Minimum ground clearance (mm) | 240 |
| 5 | Turning radius (outer) (m) | 6.6 |
| 6 | Maximum speed (km/h) | 30 |
| 7 | Maximum gradeabiliy (°) | 14 |
| 8 | Rated power/speed (kW/t/min) | 130/2200 |
| 9 | Maximum dimension of non-detachable part (mm) | 3750 X 1980X 1850 |
| 10 | Lifting height (mm) | 3550 |
4WD Material Transporter Technical Features:
1. The turbocharged and air-to-air intercooled explosion-proof dieselengine is not only powerful but also has a low exhaust emission index;
2. The vehicle is of leaf spring suspension structure, which is simple and reliable;
3. Front and rear drive axles are equipped with anti-skid self-locking differentials, making the vehicle run through roadways well;
4. The 4WD style offers the vehicle good traction performance and outstanding climbing capacity, so the vehicle is suitable for complex road conditions;
5.The sway-type articulated structure with dual articulated points functions to boost the adhesion and structural strength of the vehicle.
